Voltage/Frequencies (V/Hz)
|
220V,110V / 50Hz, 60Hz
|
|
Power (Watt)
|
≤250W
|
|
Max. Air Flow (m3/h)
|
≤3.6m3/h(60L/min)
|
|
Max. Operating Pressure (KPa)
|
400KPa
|
|
Ultimate Vacuum (KPa)
|
-92KPa(-700mmHg)
|
|
Noise Level dB(A)
|
≤58dB(A)
|
|
Ambient Temperature （℃）
|
5-40℃
|
|
Insulation Class
|
B
|
|
Cold Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V/50Hz 1min（No Breakdown）
|
|
Thermal Protector℃
|
130±5℃(Automatic Reset)
|
|
Net Weight
|
5.5Kg
|
|

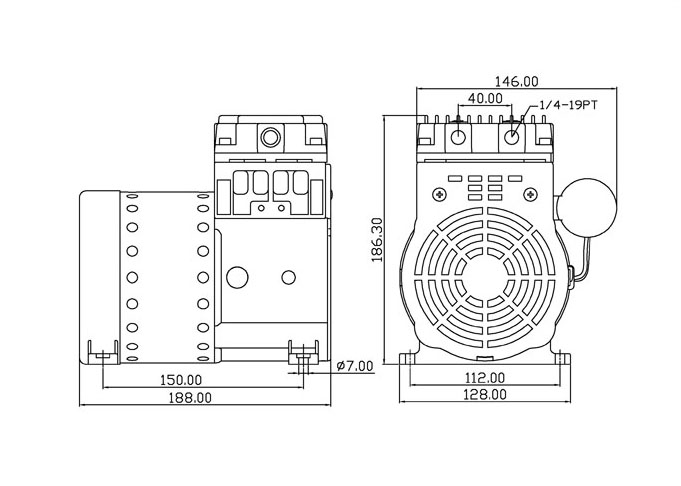

Installation Sizes
|
L150xW112mm(Installation hole 4-M6)
|
|
Product Dimensions
|
L188×W128×H186.3mm
|
|
Restart Pressure
|
0KPa
|
|
Inlet/Outlet Connections
|
1/4-18FNPT or M12xP1.25
|
Applications: Oxygen concentrators, Ozone generators, Dental & optical equipment, Sprayer systems , Printing equipment , Beauty and slimming equipment, Automatic equipment
|
